Centralized-Local PV Voltage Control Considering Opportunity Constraint of Short-term Fluctuation

阅读原文 阅读原文

【论文推荐】华北电力大学刘文霞等:考虑短时波动机会约束的光伏集中式就地电压控制策略

摘要

文章提出一种集中优化的两阶段光伏电压控制策略,以降低控制间隙源荷短时波动的不确定性影响。第一阶段,通过确定性潮流模型优化逆变器15min有功及无功功率,综合减少网损和弃光。第二阶段,通过1分钟就地控制降低短时波动导致的网损恶化,维持一阶段的优化状态。考虑波动不确定性,采用区间算法建立节点电压波动的机会约束模型,限制系统运行在合理状态。最后,提出基于二阶锥优化和灵敏度理论的模型求解算法,通过算例仿真验证模型有效性,并分析波动不确定性、光伏渗透率、逆变器容量等参数的影响。

Centralized-Local PV Voltage Control Considering Opportunity Constraint of Short-term Fluctuation

考虑短时波动机会约束的光伏集中式就地电压控制策略

Hanshen Li1, Wenxia Liu1, Lu Yu2

(1.State Key Laboratory of New Energy Power System, North China Electric Power University, Beijing 102206, P. R. China

2.State Grid Jilin Electric Power Co., Ltd. Economic and Technological Research Institute, Changchun 130022, P. R. China)

收听作者1分钟语音介绍

Centralized-local PV voltage control considering opportunity Constraint of Short-term Fluctuation

Abstract

This study proposes a two-stage photovoltaic (PV) voltage control strategy for centralized control that ignores short-term load fluctuations. In the first stage, a deterministic power flow model optimizes the 15-minute active cycle of the inverter and reactive outputs to reduce network loss and light rejection. In the second stage, the local control stabilizes the fluctuations and tracks the system state of the first stage. The uncertain interval model establishes a chance constraint model for the inverter voltage-reactive power local control. Second-order cone optimization and sensitivity theories were employed to solve the models. The effectiveness of the model was confirmed using a modified IEEE 33 bus example. The intraday control outcome for distributed power generation considering the effects of fluctuation uncertainty, PV penetration rate, and inverter capacity is analyzed.

Keywords

ADN, Inverter control, Short-term volatility, Chance constraint optimization, Centralized-local control.

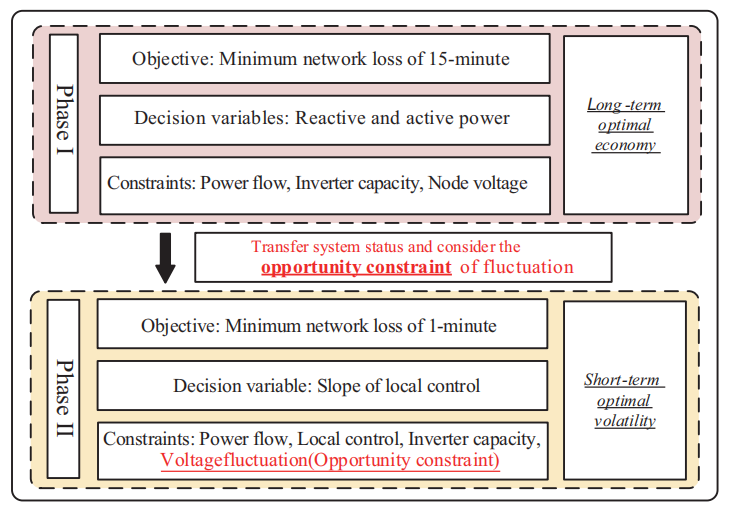

Fig.1   General framework of the proposed model

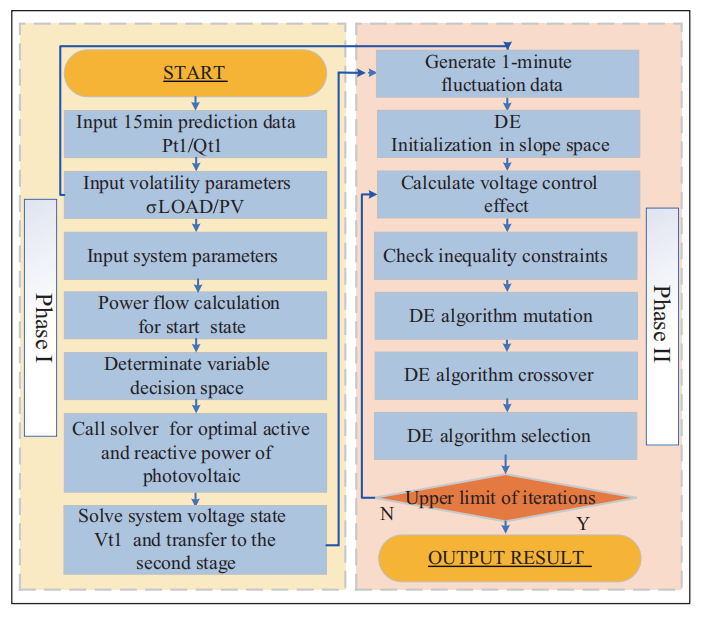

Fig.2   Solution flow chart

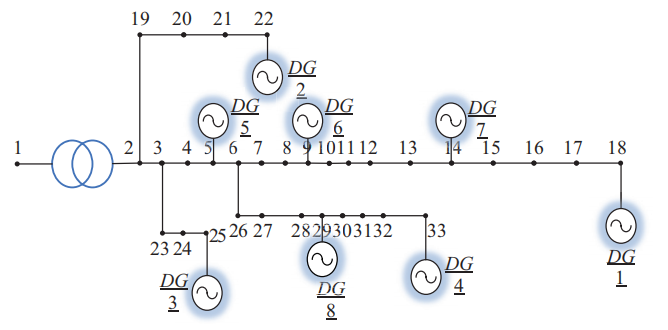

Fig.3   Improved 33-node system structure

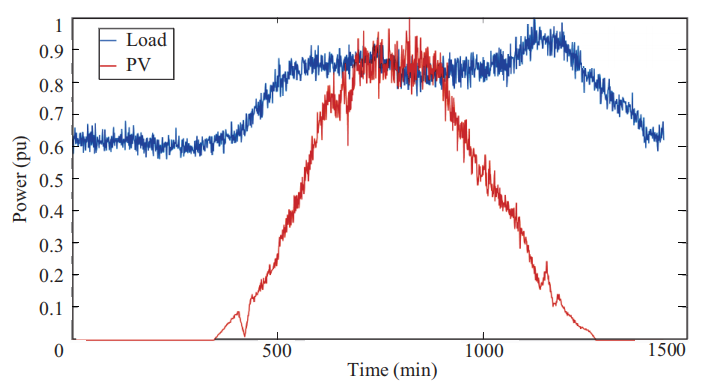

Fig.4   PV and load power curve


Fig.5   Voltage distribution without control

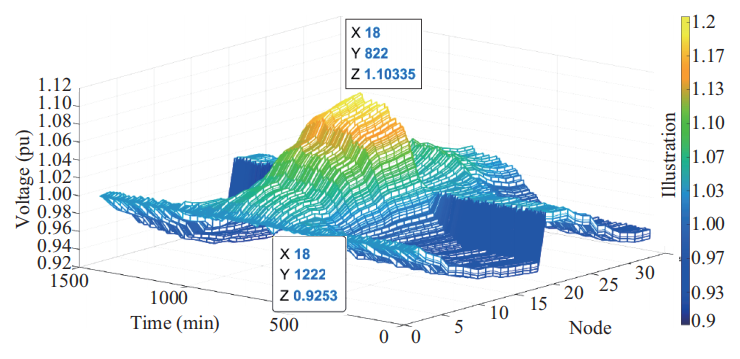

Fig.6   Voltage distribution


Fig.7   Network loss time series


Fig.8   Output of inverter at node 18

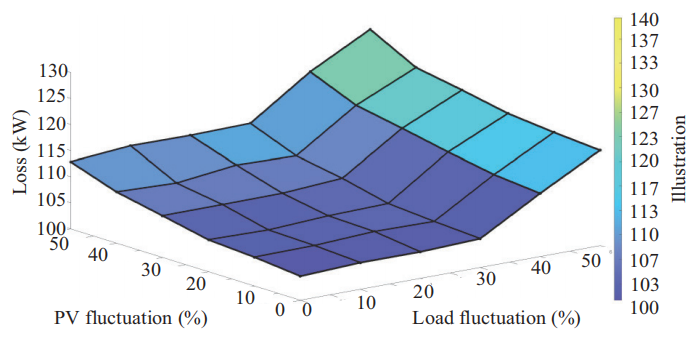

Fig.9   Influence of volatility on loss

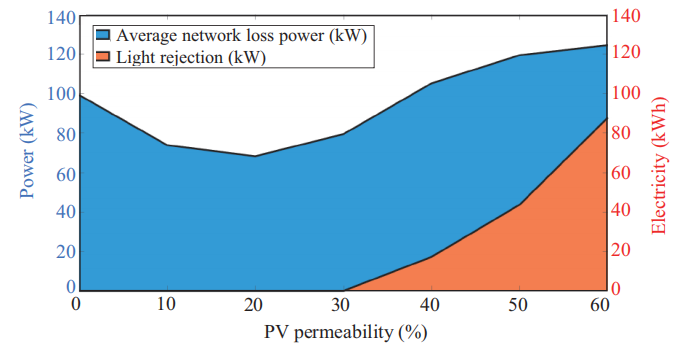

Fig.10   Influence of permeability

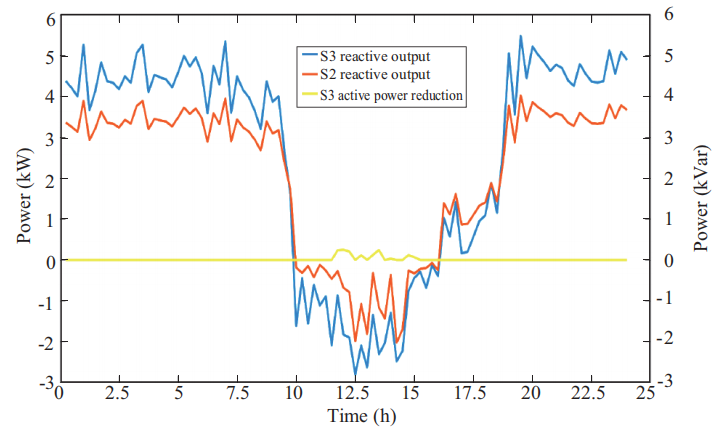

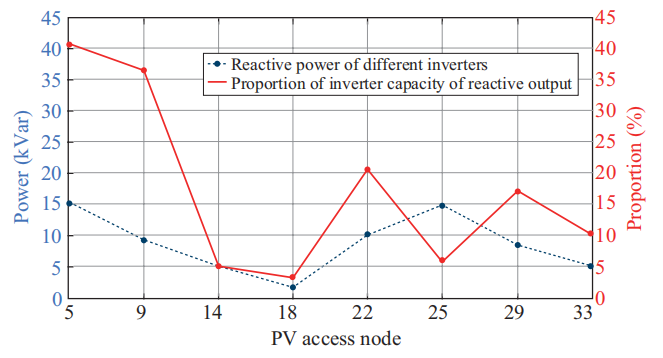

Fig.11   Reactive power state between inverters

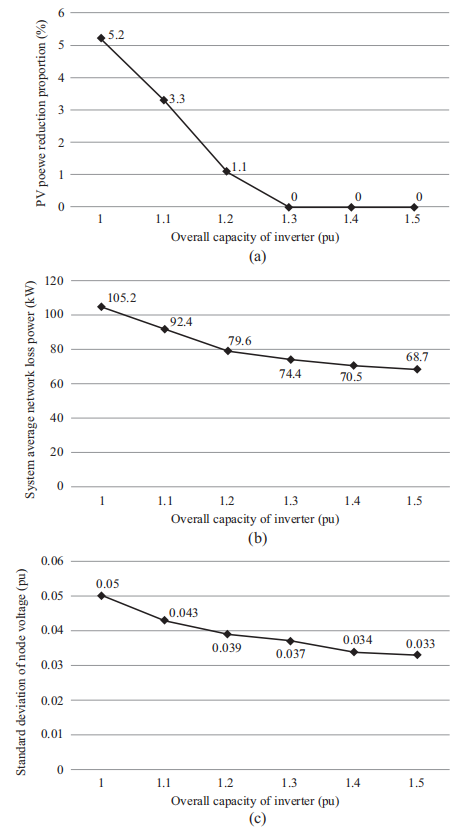

Fig.12   Influence of the overall capacity

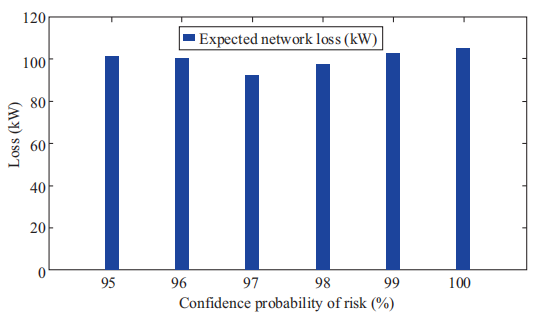

Fig.13   Expected loss under different confidence levels

本文引文信息

Li HS, Liu WX, Yu L (2023) Centralized-local PV voltage control considering opportunity constraint of short-term fluctuation. Global Energy Interconnection, 6(1): 81-94

李涵深,刘文霞,鲁宇 (2023) 考虑短时波动机会约束的光伏集中式就地电压控制策略. 全球能源互联网(英文), 6(1): 81-94
