【论文推荐】日本茨城大学 奈良浩一等:具有弹性和环境友好特性的下一代电力输送系统研究

摘要

可再生能源在实现碳中和方面发挥着重要作用。微网通过将可再生能源有效并网到配电系统中,实现了供电弹性和环境保护。本文回顾了当前世界范围内特别是日本的微网和网络化微网技术的发展趋势,包括灵活、可靠和智能的输电系统(FRIENDS)和其他一些网络化微网的案例,介绍了微网和相关系统的数字控制功能。

Next-generation power delivery system with resiliency and environmental affinity

具有弹性和环境友好特性的下一代电力输送系统研究

Koichi Nara1

(1.IEEE Life Fellow,Prof.Emeritus Ibaraki University,4-12-1 Nakanarusawa,Hitachi Ibaraki 316-8511,Japan)

Abstract

Renewable energy resources play an important role in the realization of the carbon neutrality.The microgrid can efficiently integrate numerous renewable energy systems into power distribution systems to realize power supply resiliency and environmental affinity.This paper reviews the current trend of microgrid and networked microgrid technologies worldwide,particularly in Japan,including the Flexible,Reliable,and Intelligent Energy Delivery System (FRIENDS) and some other examples of the networked microgrid.Some recent digitalized control functions of the microgrid and related systems are also introduced.

Keywords

Microgrid, Networked microgrid, Resilience, Carbon neutrality, Digitalized control, FRIENDS.

Fig.1  Ratio of renewable energy generation to total electric power consumption of each country[3]

Fig.2  Local area microgrid proposed by METI, Japan (revised from the figure depicted by METI, Japan)

Fig.3  Fractal operation of networked microgrid

Fig.4  Networked microgrid

Fig.5  General concept of FRIENDS

Fig.6  Concept of multiple power quality services

Fig.7  QCC network configuration in urban area

Fig.8  Aggregation coordinator and resource aggregator(revised from the figure in “Energy Resource Aggregation Business Handbook” by METI, Japan)

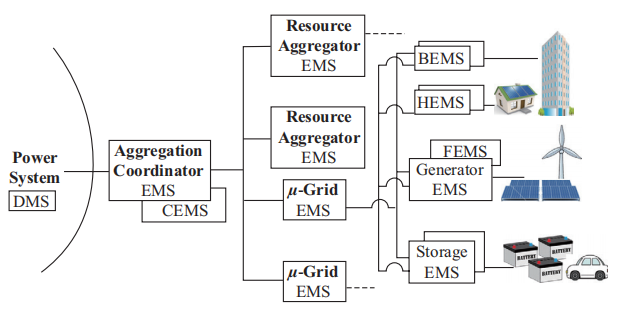

Fig.9  EMS hierarchy in the power distribution system

本文引文信息

Koichi Nara (2022) Next-generation power delivery system with resiliency and environmental affinity. Global Energy Interconnection, 5(3): 274-280

奈良浩一 (2022) 具有弹性和环境友好特性的下一代电力输送系统研究. 全球能源互联网(英文), 5(3): 274-280

Biographies

Koichi Nara

Koichi Nara received B.E., M.E.and D.E.degrees from Hokkaido University Japan,in 1968, 1970 and 1986 respectively.After his industrial and academic experiences at Mitsubishi Electric Co., Kitami Institute of Technology, Hiroshima University, Ibaraki University and National Institute of Technology Fukushima College, Japan, he is currently a director of the Systems Evaluation & Research Lab., Japan. His research area is the optimization of operation and planning of power systems and power distribution systems.He is a Life Fellow of the IEEE and of the IEE of Japan.
